ISO Approval 2.5KW Shoe Wear Tester For Heat Insulation Performance

Name: ISO Approval 25KW Shoe Wear Tester For Heat Insulation Performance
Brand: HAIDA
Price: 1 USD

Brand Name : HAIDA

Model Number : HD-P860

Certification : CE,ISO

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 30 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Power : Electronic

Sandbox size : 400*400*80mm

Sand height : ≥5mm

Sand size : (0.3-1.0)mm

Heating power : 2.5kw

Weight : 53kg

Heat transfer medium : Steel ball: Φ5mm; 4kg

Supply : AC220v, 5A

Contact Now

2.5kw Footwear Heat Insulation Tester To Test Heat Insulation Performance Of Shoes

STANDARD PARAMETER

Item	Specification
Sandbox size	40040080mm
Test temperature	(150±5)℃ or (250±5)℃
Sand height	≥5mm
Sand size	(0.3-1.0)mm
Heat transfer medium	Steel ball: Φ5mm; 4kg
Temperature control accuracy	±0.5℃
Hot plate max. temperature	250℃
Heating power	2.5kw
Power	AC220v, 5A
Machine volume	Appro. 500500360mm
Weight	53kg

PRODUCT DESCRIPTION

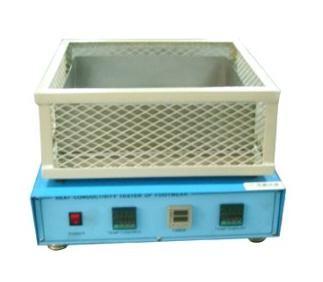

This tester is used to determine the heat insulation performance for the whole shoe. Place the specimen (a whole shoe) on the hotplate with a specified temperature for a certain period to examine the increase of temperature inside of the shoe.

TEST STANDARD

ISO 20344 5.12
