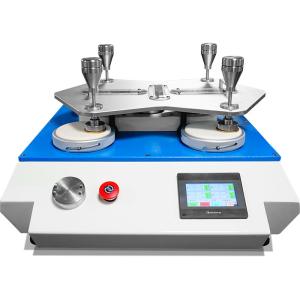

Automatic Martindale Abrasion Tester ,Textile Testing Equipment LCD display
PRODUCT DESCRIPTION
Martindale abrasion tester mainly applies to the pilling & abrasion resistance test of textile the similar fabric.
Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented
for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.
TEST STANDARD
ASTM D4970, ISO12945-2 and other pilling degree test;
ASTM D4966, ISO12947 and other fabric abrasion tests.
STANDARD PARAMETER
| Technical Index | HD-P306-4 | HD-P306-6 | HD-P306-8 |
| Consumables | Baize 4,Testing Cotton 4 | Baize 6,Testing Cotton 6 | Baize 8 ,Testing Cotton 8 |
| Interface | LCD display |
| Count display | Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times |
| Maximum stroke | 24 ± 0.5mm, 60.5 ± 0.5mm |
| Loading : | a. Holder:200±1g |
| b. Dress material counter weight: 395±2g |
| c. Furnishings/Leather material counter weight: 594±2g |
| d. Stainless steel butterfly slice: 260±1g |
| Abrasion chunk effective rub diameter | A model: 200g(1.96N,9KPa) , abrasion head￠ 28.8 -0.084mm |
| Pace speed of the holder | 50-2r/min |
| Sample loading pressure hammer | 2385±10g |
| Diameter of abrasion fabric | 140mm |
| Diameter of Specimen | 38mm |
| Power | AC 220V/50Hz |
| Dimension | 600x650x320mm | 750x960x520mm | / |
