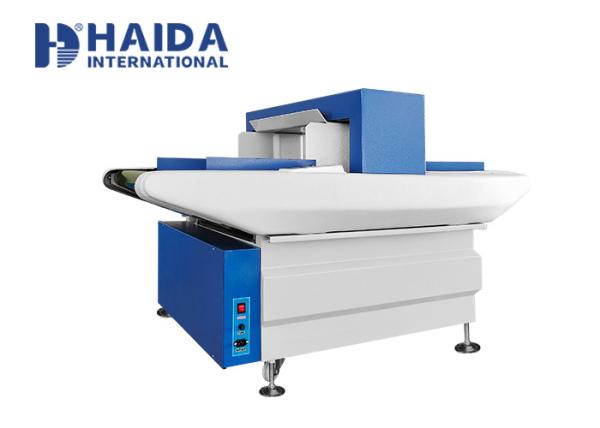

High Precision Fast Needle Detector Shoe Testing Machine For Textile Industry
INTRODUCTION
This machine used to detect the broken needles, shoe nail, iron wire and other metal pieces left inside toys, garments, textile ,shoes ,etc.
Application
High-sensitivity anti-interference conveying needle detector is mainly used in toys, clothing, clothing, zippers, hardware buttons, shoes, chemicals, leather, knitting, etc., which need to detect ferromagnetic metal impurities, and are used to detect inclusion or loss. Broken needles, iron wires and other ferromagnetic non-ferrous metals in raw materials or products can avoid direct or indirect losses to consumers or manufacturers. It is an indispensable testing instrument for exported products. It can also be used in food processing companies to eliminate the detection of ferromagnetic metals in aluminum bags.
Technical parameters
| Technical Index | HD-W801 | HD-W801-1 | HD-W801-2 |
| Detecting method | Magnetic induction |
| Detecting adjustment | Stepless adjustment |
| Detecting width | 400-600mm |
| Detecting height | 200mm | 150mm | 100mm |
| Detecting ability | ≥1.5mm iron ball | ≥1.2mm iron ball | ≥0.8mm iron bal |
| Alarm method | Buzzer |
| Belt speed | (Appro.) 25m/min |
| Power supply | AC110-230V,50-60Hz |
| Rated output | 90W |
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
